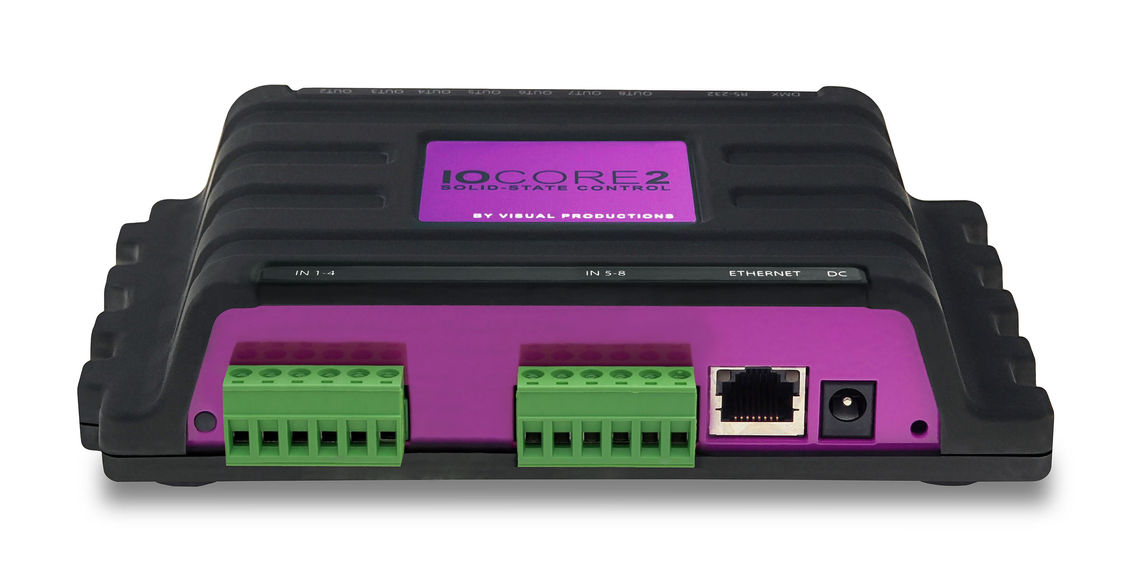

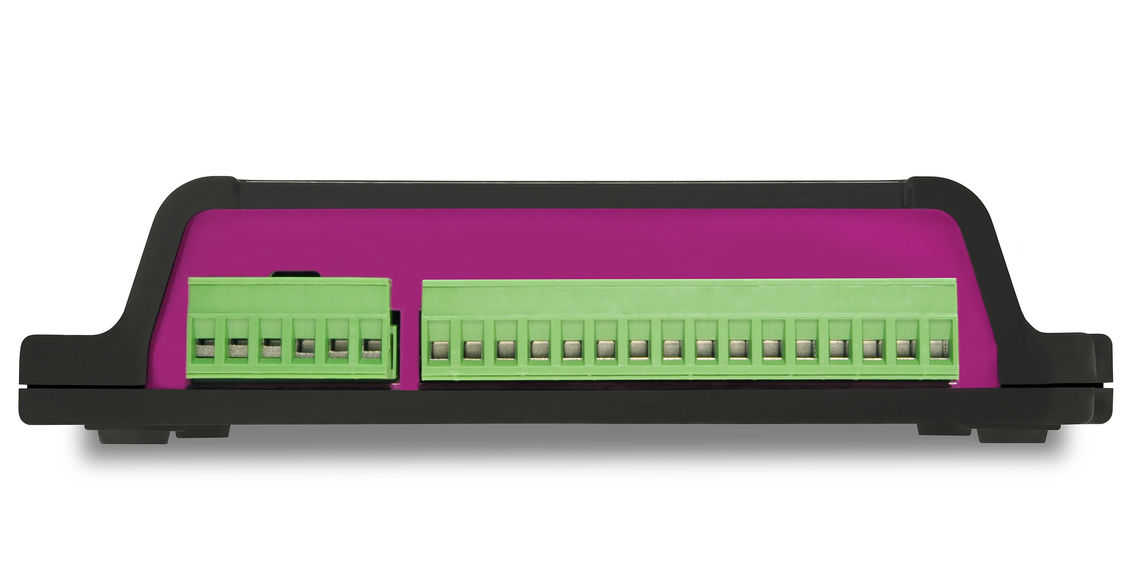

IOCORE2

GPIO interface module

Visual Productions

See what you like? Talk to us!

Ethernet port
Programming via web-interface
8 x Analogue or Digital inputs
8 x Relay (250VAC/30VDC max. 2A)
DMX512-A (ANSI E1.11) port (opto-isolated, input or output)
RS-232 port (in & out)
Art-Net (in & out)
sACN (in & out)
TCP (in)
USP & OSC (in & out)
12-24 DC 500mA (PSU included)
Power over Ethernet (class I)
Kensington lock
Desktop, DIN Rail or 19″ rack mount (optional adapter)
Operating temperature -20°C to +50°C (-4°F to +122°F)
Compliance EN55103-1 EN55103-2
Bundled with CueluxPro, vManager and Kiosc software

The IoCore2 is a network-based solid-state interface for GPIO signals. It features eight GPI ports that can be configured as digital contact-closures or analog 0-10V level inputs. The IoCore2 also has eight GPO ports that are fitted with potential free relay switches. Furthermore, it has a RS-232 port, a bi-directional DMX-512 port and it supports many Ethernet based protocols.

Extend CueCore connectivity

The IoCore2 is an expansion module for the CueCore2. It can extend the CueCore's capabilities with its GPI, GPO, RS-232 and DMX ports. Incoming signals on any of these ports can be used to trigger lighting scenes inside the CueCores.

Convert and trigger protocols stand-alone

The IoCore2 is capable of sending, receiving and converting between any of its physical ports (GPI, GPO, RS-232 & DMX) and Ethernet based protocols (TCP, UDP, OSC & Art-Net).

Program show-control automation

The web-interface allows flexibel triggers and conversions to be programmed inside the IoCore2. The unit can operate autonomously, no external equipment required.

Combine with other products from the family

The IoCore2 can easily be combined with the CueCore2 and QuadCore lighting engines. Or the B-Station, a wall-mount button panel. And the RdmSplitter, a DMX signal booster/splitter.
