KEY FEATURES

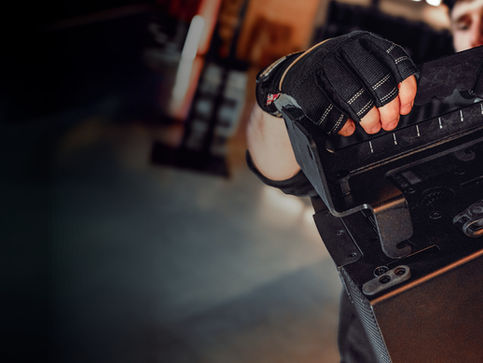

FastRig® MECHANISM

Tool-free rigging between subwoofers and the flying frame.

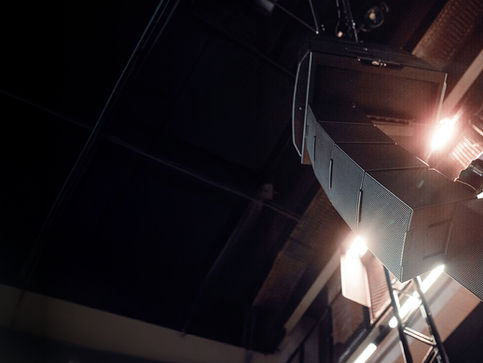

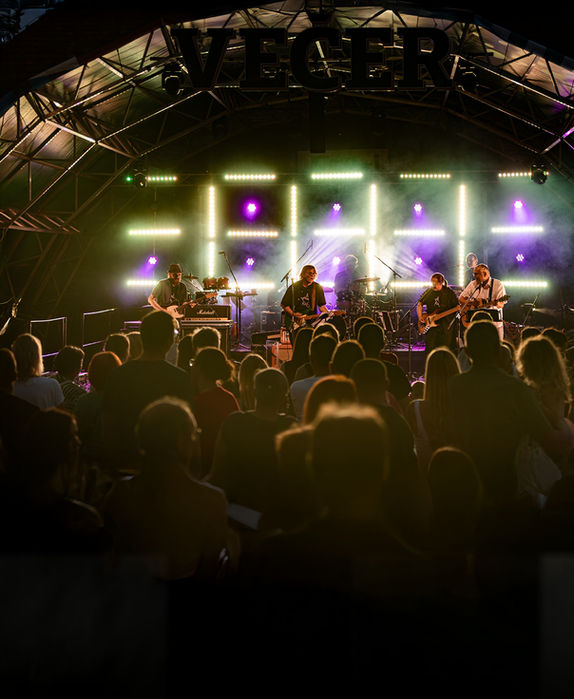

CONCERTS

Built for fast load-ins and repeatable set-ups. MAILA delivers powerful, clear audio for concert audiences in venues with tight schedules, limited rigging options and sightline constraints.

MAILA MODULES

MAILA
SAT

Passive Array Satellite Speaker

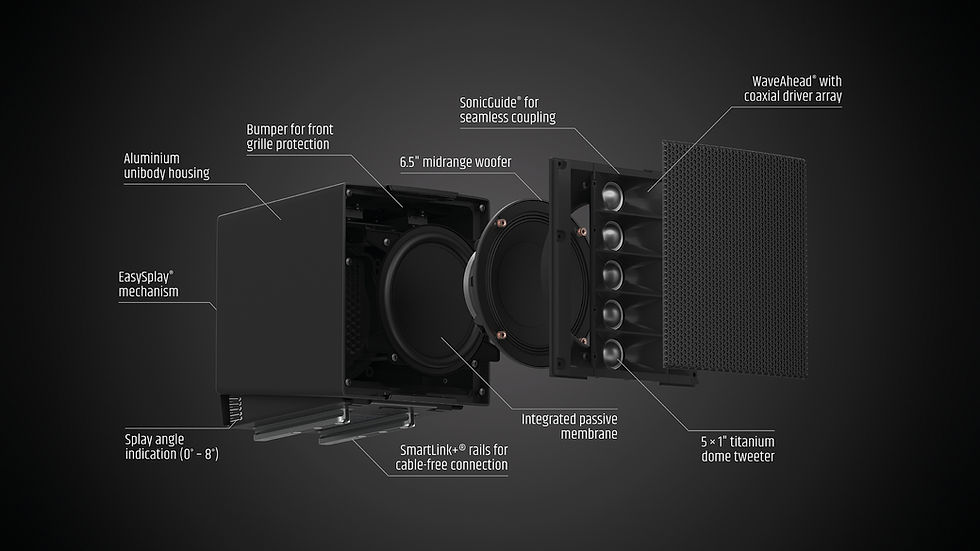

MAILA SAT is a true line array element and is full of surprises. The elegant and robust unibody aluminium enclosure includes five 1" tweeters in front of a 6.5" midrange driver in front of a passive membrane, arranged in a coaxial design based on advanced WaveAhead® technology and coupled almost interference-free via the SonicGuide® (two combined waveguides). The result is a classic line array radiation pattern with impressive throw and energy density.

MAILA
SUB (P)

2 × 15" Bandpass PA Subwoofer

MAILA SUB and MAILA SUB P form the basis of larger MAILA system configurations. The 2 × 15" high-performance subwoofer features a bandpass design and delivers a massive, powerful bass foundation for any application. The acoustic concept is based on a planar wave bandpass design with a quarter-wave horn and symmetrical driver construction. By placing the two 15" speakers opposite to each other, MAILA SUB enables exceptional impulse compensation, resulting in a powerful and precise low-frequency punch.

MAILA
SPA

Power Amplifier for Up to Eight Satellites

MAILA SPA is the only MAILA module without integrated loudspeakers – and yet an integral part of the MAILA concept. This amplifier module in elegant unibody aluminium design with integrated 1.25 kW power amplifier features LD Systems' SysCore® DSP and can power up to eight MAILA SAT satellites. Via the SmartLink+® system, the satellites can be simply slid onto the SPA and cable-free supplied with the amplified audio signal. In addition, SmartLink+® enables automatic detection of the installed satellites for automatic or manual DSP processing.

MAILA
COL (P)

4 × 6.5" Column Speaker

MAILA COL and MAILA COL P full-range column modules add authority in the crucial low-mid band while keeping the overall look visually discreet. With four 6.5" woofers in an elegant unibody aluminium enclosure, the column module integrates naturally into both ground-stacked and flown setups. It also forms a clean system base for MAILA SAT satellites, which can be mounted directly to the column for fast, tidy builds.

The MAILA COL includes an integrated 4-channel DSP amplifier with 2.5 kW total power, driving the column itself and up to eight MAILA SAT satellites for a streamlined, self-contained system approach.

MAILA
SAT X

Passive Nearfill or Array Satellite Speaker

MAILA SAT X is a hybrid satellite combining a point-source speaker and a true line array element. Depending on the application, it automatically adapts its vertical dispersion to provide either 40° near-fill coverage or a 8° array characteristic when used with MAILA SAT. Its compact, robust, unibody aluminium enclosure houses the same acoustic components as MAILA SAT.

SpeakON® connectors enable clean, efficient daisy-chaining of multiple SAT X units, while SmartLink+® provides tool-less, cable-free connection of multiple MAILA SAT satellites.

MAILA SUB 15 (F) (P)

15" Bass Reflex PA Subwoofer

The SUB 15 is a high-power 1 × 15" bass reflex subwoofer with a compact footprint, delivering impressive deep bass performance for both mobile use and fixed installations. It supports scalable deployment options – from ground stacks (up to three units) to flown sub arrays (up to six units). A docking plate enables clean integration with pole (M20) or MAILA COL setups. The range includes active, passive (P) and flyable (F) variants.

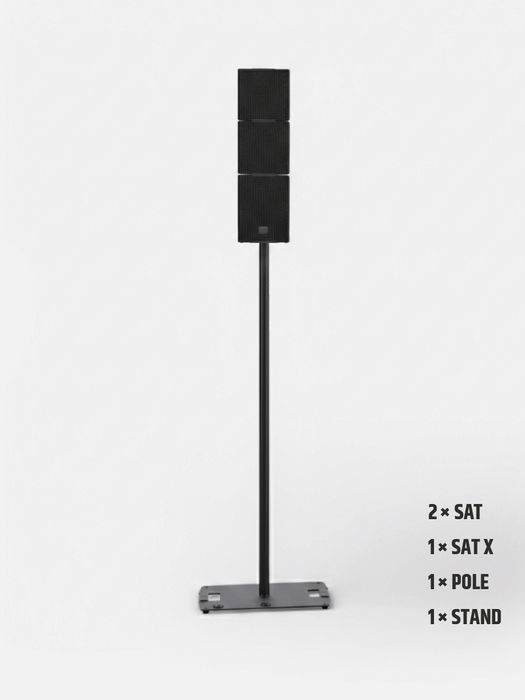

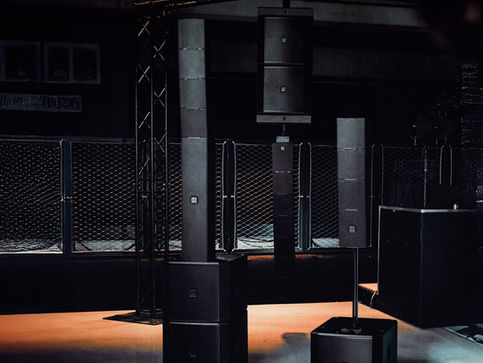

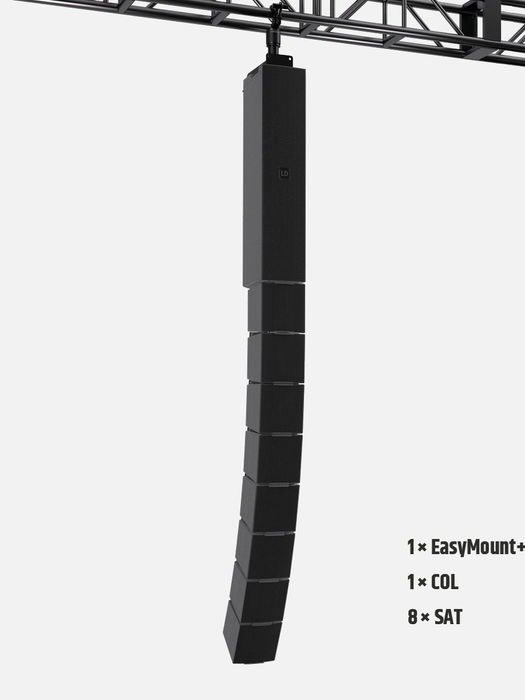

MAILA SETUP EXAMPLES

MAILA® APP

The MAILA app for iPadOS is designed to make setup as easy as possible on the job. Plan and prepare your setup in advance: drag and drop the required modules into the virtual stage grid, enter the venue and audience details, and let room simulation calculate the required SAT angles while automatically applying the matching EQ.

On site, simply connect your active modules to the app and apply your saved settings – done.

ROOM SIMULATION

Automatically calculates the required SAT splay angles and applies the matching EQ based on room length and the installation height of the satellite array.

FOR PASSIVE SYSTEMS

For passive MAILA systems, ADA amplifiers in combination with ArmoníaPlus provide a structured, repeatable setup workflow. We have transferred the MAILA Quick Setup approach into ArmoníaPlus by creating dedicated manufacturer EQs (MEQ) and presets for 250+ MAILA configurations.

Select your MAILA configuration and receive the key setup guidance you need—such as pick-up points and satellite curving. The selected configuration includes the required compensation for loudspeaker coupling and air loss over distance, providing a reliable starting point.

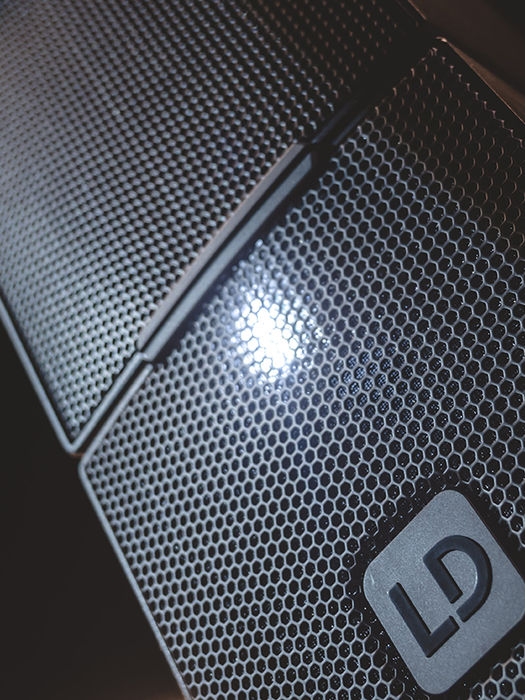

ArmoníaPlus supports our Wink-LED identification for passive MAILA components and offers further tuning options, including live Smaart integration, plus valuable insight into system health and available headroom.

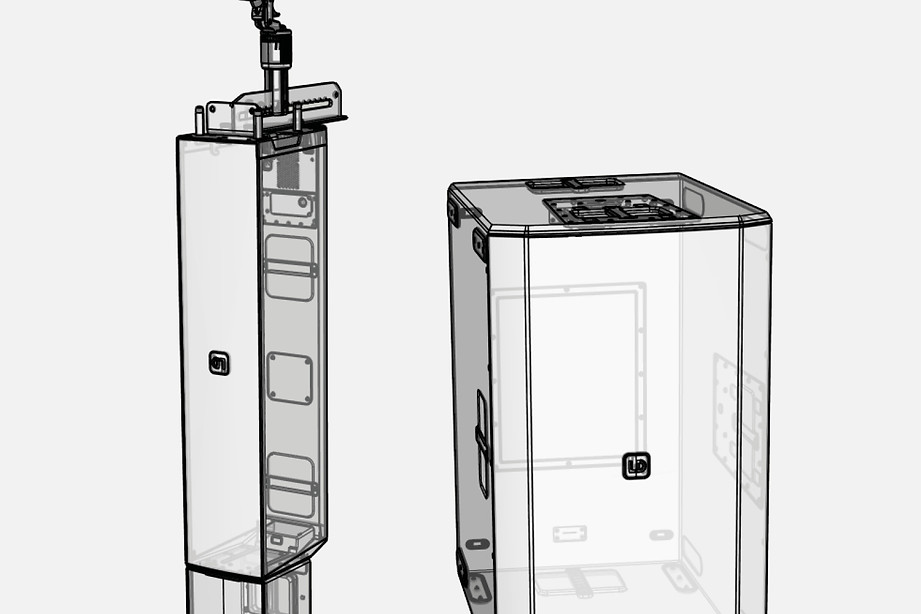

EASE & 3D MODEL DOWNLOADS

Download MAILA planning files, including 3D models and prediction data for EASE and EASE Focus 3. Use them to build accurate venue simulations, verify coverage, and document system designs for tech packs and approvals.
