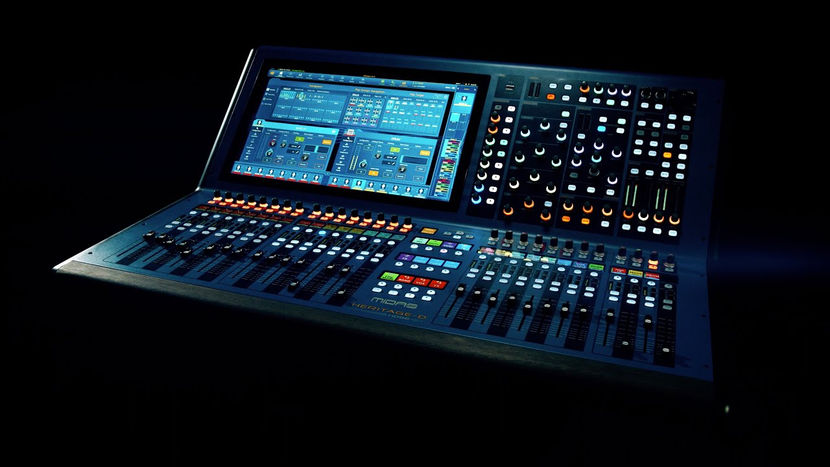

A State-of-the-art, Modern Digital Console from Midas
Part of the Heritage D series, the Midas HD96-24-CC-IP is a world-class, 144-input digital mixing console. This mixer is jam-packed with features, including eight award-winning Midas preamps, 120 time-aligned, phase-coherent mix buses, 24 VCA groups, and top-tier digital effects. The HD96-24-CC-IP makes taking command of your mix is a piece of a cake, with 28 motorized 100mm faders, interpolated touch-sensitive controls, and a 21-inch display with an advanced multi-gesture touchscreen interface. This mixer teems with state-of-the-art digital tech, boasting HyperMAC and AES50 networking, dual Ultranet ports, and a dual network bridge format converter. An integrated wireless transceiver module and dual redundant power supplies rounds out the Heritage D HD96-24-CC-IP's impressive feature set.
Graviton Mk 2: start your engines
The HD96-24-CC-IP eclipses the performance of its predecessors, thanks to its Graviton Mk 2 engine. The live sound experts here at Sweetwater are blown away by the immense dynamic range supplied by this 64-bit summing mix engine. You also get world-class sound, thanks to industry-leading delay compensation. With the HD96-24-CC-IP, delay-induced comb filtering artifacts will be a thing of the past, leaving nothing but clean, pure audio in its wake.
Ultra-flexible mixing
If you're looking for a flexible live mixing solution, you'll be floored by the Midas HD96-24-CC-IP. This digital console's Flexi Aux system permits you to send aux to aux for group- or stem-style mixing. Want to crush a drum kit with parallel compression and send it to the monitor mix? With the HD96-24-CC-IP, you can. Beyond that, per-channel variable phase enables you to blend sources together — seamlessly — with high- or low-phase changes. You also get tap-off points that facilitate sending from any point in a channel's signal path, plus post-insert fader points and drag-and-drop processing options order.
Next-level digital processing

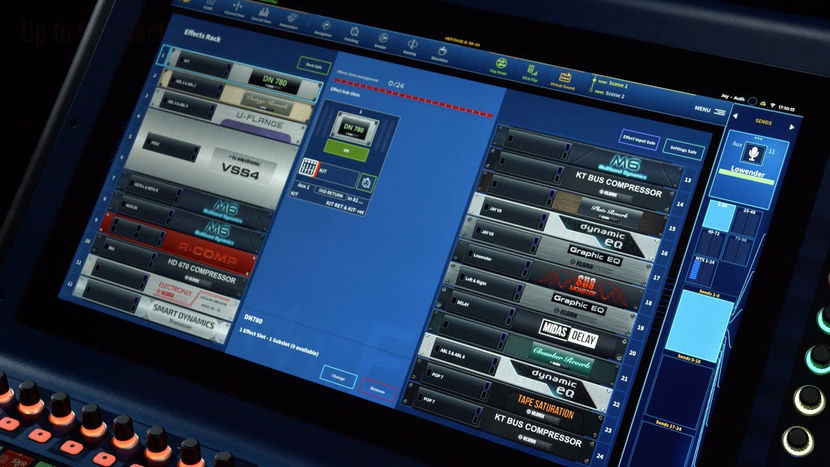

The HD96-24-CC-IP is fueled by 18 SHARC DSPs, 14 layer boards, 5 8th-generation FPGAs, and 2 GPU co-processors — it's a high-powered live-mixing beast. You get a full arsenal of effects — up to 96 — including TC Electronic-derived effects and emulations.
-
TC 6000 (VSS4)
-
TC 3000 (VSS3)
-
TC Electronic 2290
-
HD2A
-
HD670
-
KT1176
-
R-Comp
-
KT Bus compressor
-
Mteq Program EQ-HD
-
M6 compressor
-
HD Stressor compressor
-
Ultra-Dualistic Voice Doubler
-
Rack-Amp (guitar amp and cab emulation)
-
Glow (harmonic mix glue)
-
Rotor Motor (Leslie cabinet emulation)
-
Enlightenment Bass
-
XL4 EQ
-
M Harmonics
-
Uncl HD Distortion
-
Prime Input Expander
-
Wave Designer
-
And more!
Tons of advanced features

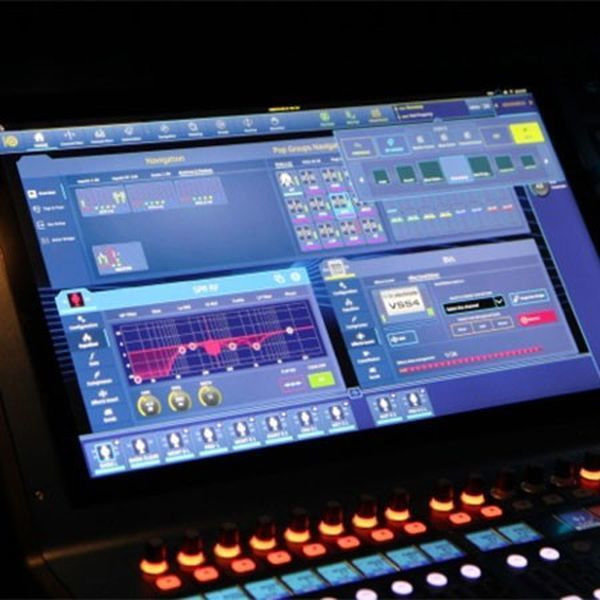

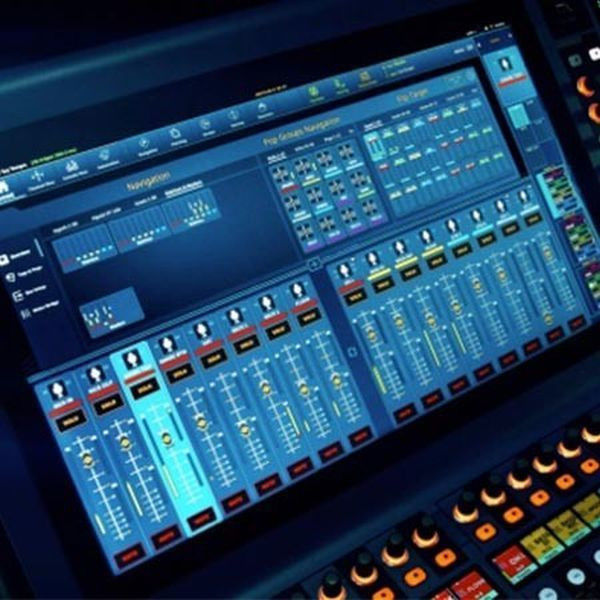

Large events require advanced features, and the Midas HD96-24-CC-IP delivers. It all starts with a 21-inch display with an advanced multi-gesture touchscreen interface and control for up to 10 faders at once. This digital console's Shout Mixer permits you to create 16 shout inputs for complex talk systems with 12 dedicated outputs. To top it off, The HD96-24-CC-IP's Channel AI listens to your source, tell you what it is, suggests gain, EQ, compression, and gain settings, and more. Mixing has never been easier!
Midas Heritage D HD96-24-CC-IP Digital Mixer Features:
-
144-input digital mixing console with 96kHz operation
-
Graviton Mk 2 engine yields world-class sound and industry-leading performance
-

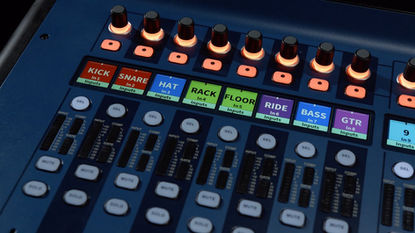

28 motorized 100mm faders and interpolated touch-sensitive controls
-

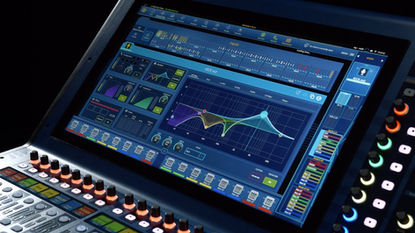

21-inch display with an advanced multi-gesture touchscreen interface
-
8 award-winning Midas preamps, 120 phase-coherent mix buses, and 24 VCA groups
-
Flexi Aux system permits you to send aux to aux for group- or stem-style mixing
-
Per-channel variable phase enables you to blend sources together — seamlessly — with high- or low-phase changes
-
Tap-off points facilitate sending from any point in a channel's signal path
-
Post-insert fader points with drag-and-drop processing options order
-
A full arsenal of effects — up to 96 — including TC Electronic-derived effects and emulations
-
Shout Mixer permits you to create 16 shout inputs for complex talk systems with 12 dedicated outputs
-
Channel AI listens to your source, tell you what it is, suggests gain, EQ, compression, and gain settings, and more
-
HyperMAC and AES50 networking, dual Ultranet ports, and a dual network bridge format converter
-
Integrated wireless transceiver module makes creating wireless setups easy
-
Dual redundant power supplies ensures rock-solid reliability
Tech Specs
Type: Digital Mixer
Channels: 144
Inputs - Mic Preamps:8 x XLR Phantom Power:8
Outputs - Direct:8 x XLR
Inputs - Digital:3 x XLR (AES/EBU), 4 x AES50, 2 x Ultranet, 2 x RJ45 XLR/Opticon XLR (Snake)
Outputs - Digital:3 x XLR (AES/EBU)
Talkback: 1 x XLR
MIDI I/O: In/Out/Thru, 5-pin DIN
Data I/O: 1 x Ethernet, 1 x Serial Port (Diagnostic)
Headphones: 2 x 1/4"
USB: 8 x Type A
Bluetooth: Yes, 4.0
I/O Expansion Slots:2 x Slots Available
Word Clock: 2 x BNC (In/Out)
Faders: 28 x 100mm Motorized Faders
A/D Resolution: 24-bit/96kHz
EQ Bands: 4-band Parametric
Effects: Yes, 96
Signal Processing: Gate, Compressor
Screen: 21" touchscreen
Height: 13.9"
Depth: 40.5"
Width: 28.3"
Weight: 95 lbs.
Manufacturer Part Number:MDS-HD96-24-CC-IP
DL251
48 Input, 16 Output Stage Box with 48 Midas Microphone Preamplifiers

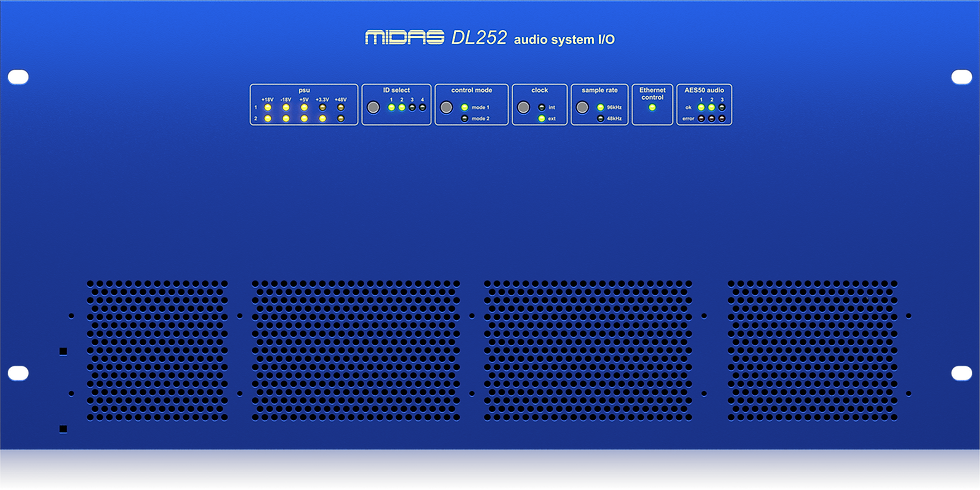

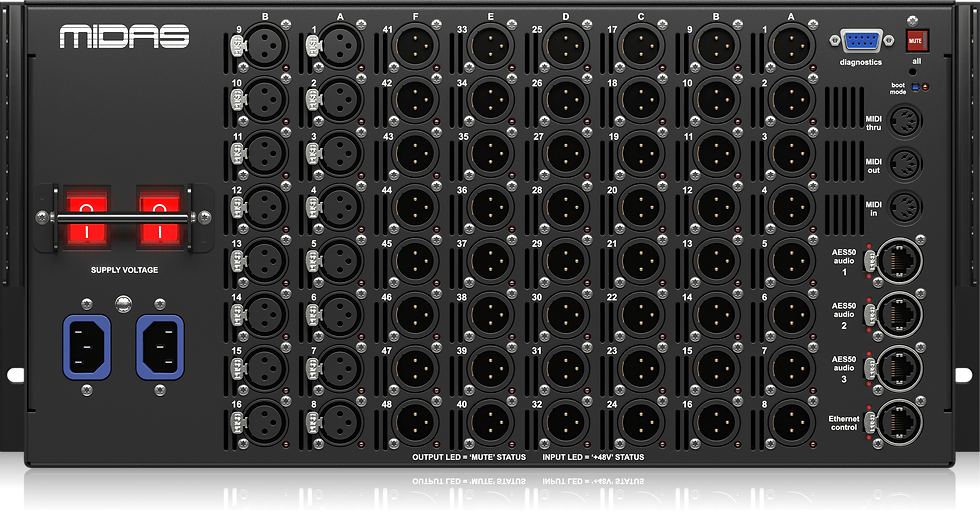

DL252
